- Place of Origin:Hebei China (Mainland)
- Main Export Market:America, Europe, Australia, Mid-east, Africa, Asia
- Price:US $10 – 21 / Set
- Price Valid Time:7 days
- Company Certificate:ISO 9001:2008,CE,SGS|ISO 9001:2008,CE,SGS
- Quality Inspection:7314490000
- HS Code:DeChengli
- Brand Name:Wire Mesh Fence
- Type:Electro galvanized iron wire,hot-dipped galvanized iron wire,PVC coated wire
- Material:by sea
- Means of Transport:within 20 days
- Delivery Date:Wire Gauge:2.2-6mm
- Specification:used for prevention for road, highway, railway, garden, airport, residential district,etc.
- Applications:—
- Hole Shape:—
- Mesh:—
- Dia:—
- Packaging Detail:within 30 days after formal order
- Delivery Detail:{$product_Parameters25}

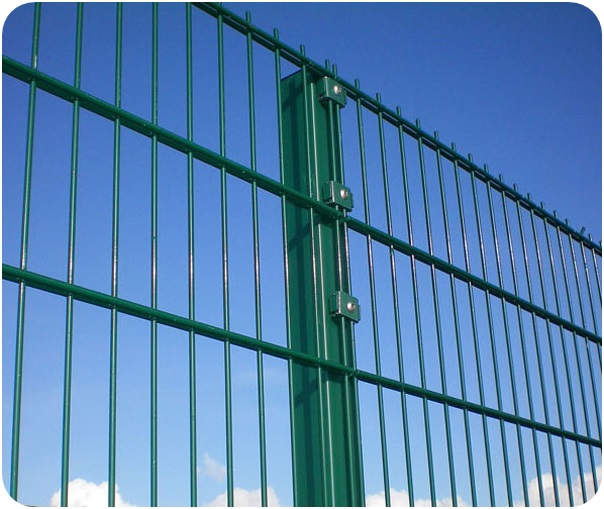

Twin Wire Fence is a rigid yet unobtrusive mesh fencing system. It is often used as a perimeter fence for industrial or commercial premises and sports pitches where a strong mesh fencing system is required.
Details:
>> Material:
Double wire fence uses high quality iron rod,low carbon steeland high quality steel as raw material
>> Fence size:
200mm*50mm*2.5m*height from 630mm–2430mm or available on request.
>> Wire diameter:
6mm+5mm+6mm,8mm+6mm+8mm.or as your requriments
>> Power coating:
the thickness of power coating is 100–120 microns usually.
>> Surface finish:
hot dipped galvanized;powder spraying coated;power dipped coated.
Surface Treatment: Electric Galvanized, Hot dipped galvanized , Plastic painting, PVC coated.
Features:
* Strong and reliable security
* Versatile bottom option
* Attractive appearance
* Vandal resistant
* Cost effective
* Low maintenance ideal
Process:
Straightening and cutting short – Welding – Galvanized – Powder coated – Packaging – Shipping
Application:

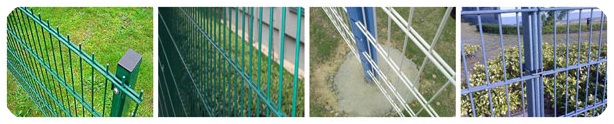

At present,our Double Wire Fence has been applied to factories,building sites, vegetable greenhouses,cultivation bases,urban roads,flowers seperation,especially suitable for mountain, sloping lawn and curvature area, and applied widely in extensive areas because of its lower price.

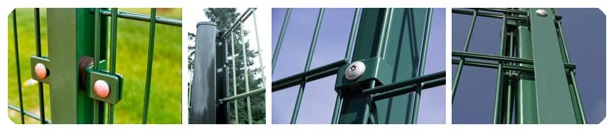

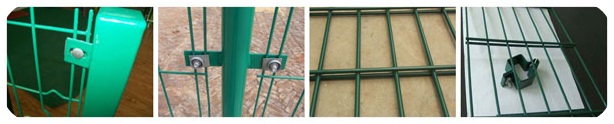

Posts:
1) Square Post (50*50mm, 60*60mm)
2) Rectangular Post (80*60*2.5mm, 120*60*3mm)
3) Peach post(70*100mm)
4) All the posts are provide with plastic caps or Roofing rainhat.
5) The finished surface usually is Galvanizing and Powder coating or alternatively.
Double Wire Fence System Specifications | |||||
Height x Width(mm) | Mesh Size(mm) | ??Wire Diameter | Post Height(mm) | ||
Wire Dia(mm) | Wire?Dia(mm) | Wire Dia(mm) | |||
630X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 1100 |
830X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 1300 |
1030X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 1500 |
1230X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 1700 |
1430X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 1900 |
1630X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 2100 |
1830X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 2400 |
2030X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 2600 |
2230X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 2800 |
2430X2500 | 50X200 | 8X2 + 6 | 6X2 + 5 | 6X2 + 4 | 3000 |
Other height and length are on request. |

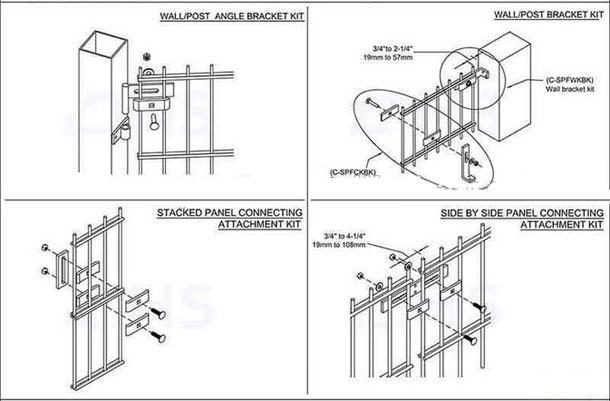

Accesssories
Various Fence Posts
Other Accessories
